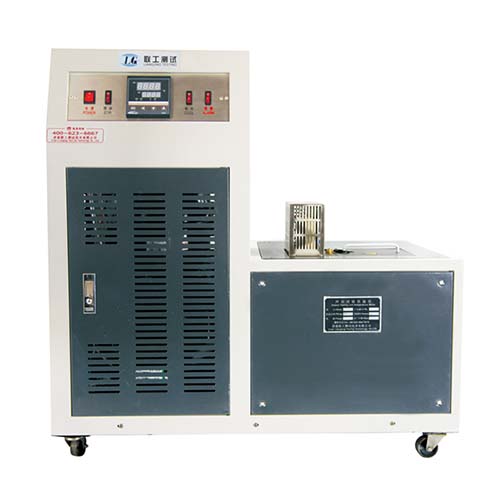

CDW-40/60/80 Impact Test Low-temperature Chamber
  • CDW-40/60/80 Impact Test Low-temperature Chamber

CDW-40/60/80 Impact Test Low-temperature Chamber

This equipment adopts imported compressor cascade refrigeration technology, adopts the principle of heat balance and mixing method of circulation to achieve automatic uniform cooling, constant temperature of sample

Usage and Charateristics:
Impact Testing Low Temperature Meter is the compressor refrigeration equipment of our company latest research and development in accordance with low temperature device requirements of JB-5376-91 "Low Temperature Thermostat Technical Conditions" and GB/T 229-2007 "Metal Charpy Notched Impact Test Method". This equipment adopts imported double compressor cascade refrigeration technology, adopts the principle of heat balance and mixing method of circulation to achieve automatic uniform cooling, constant temperature of sample, it can fully meet the temperature control indicators stipulated in the national standard GB/T 229-2007, American standard and the European standard of ASTM E23-02a, EN10045, ISO148, ISO83. The equipment adopts single chip microcomputer technology control, digital display temperature value, automatic temperature control, automatic timing, automatic alarm, safe and convenient operation, high cooling speed, large volume, high precision temperature control, is the most ideal equipment of  specimen cooling and heat preservation in the material low temperature impact testing. At the same time, it can also be used for other low temperature detection and testing.
Main Technical Parameters:

Model

CDW-40

CDW-60

CDW-80

Temperature range

Room temperature~-40℃

Room temperature~-60℃

Room Temperature~-80℃

Control precision

±0.5℃

The dimensions of cooling tank
(L×W×H)mm

275×160×120

Outside dimension
(L×W×H)mm

910×510×920

Cabinet Material

Iron spray

Specimen quantity

No less than 60

Refrigeration method

Compressor refrigeration

Colling medium

Ethanol or other unfrozen liquid

Power supply

1.8kW

2.3kW

2.5kW
